Pierre's field guide to partition table recovery
© DataRescue sa/nv 1997-2001

Part 3 - Miscellaneous Resources

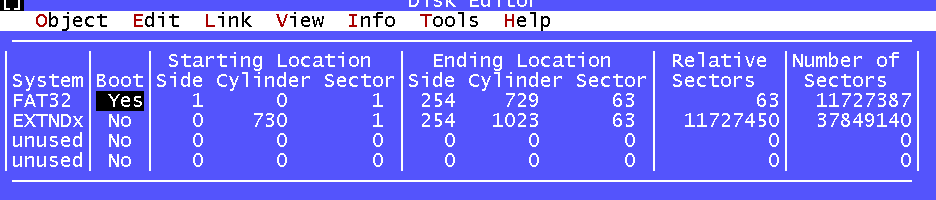

The above capture is the partition table of a Toshiba TECRA 780 upgraded to a 25 GB IBM Travelstar hardrive. As you can see, the ending location for the extended partition is meaningless but the relative sectors numbers and the number of sectors within a partition are correct and meaningful.


Bart's SCSI tool : outstanding SCSI Freeware. Information and links on file systems.
